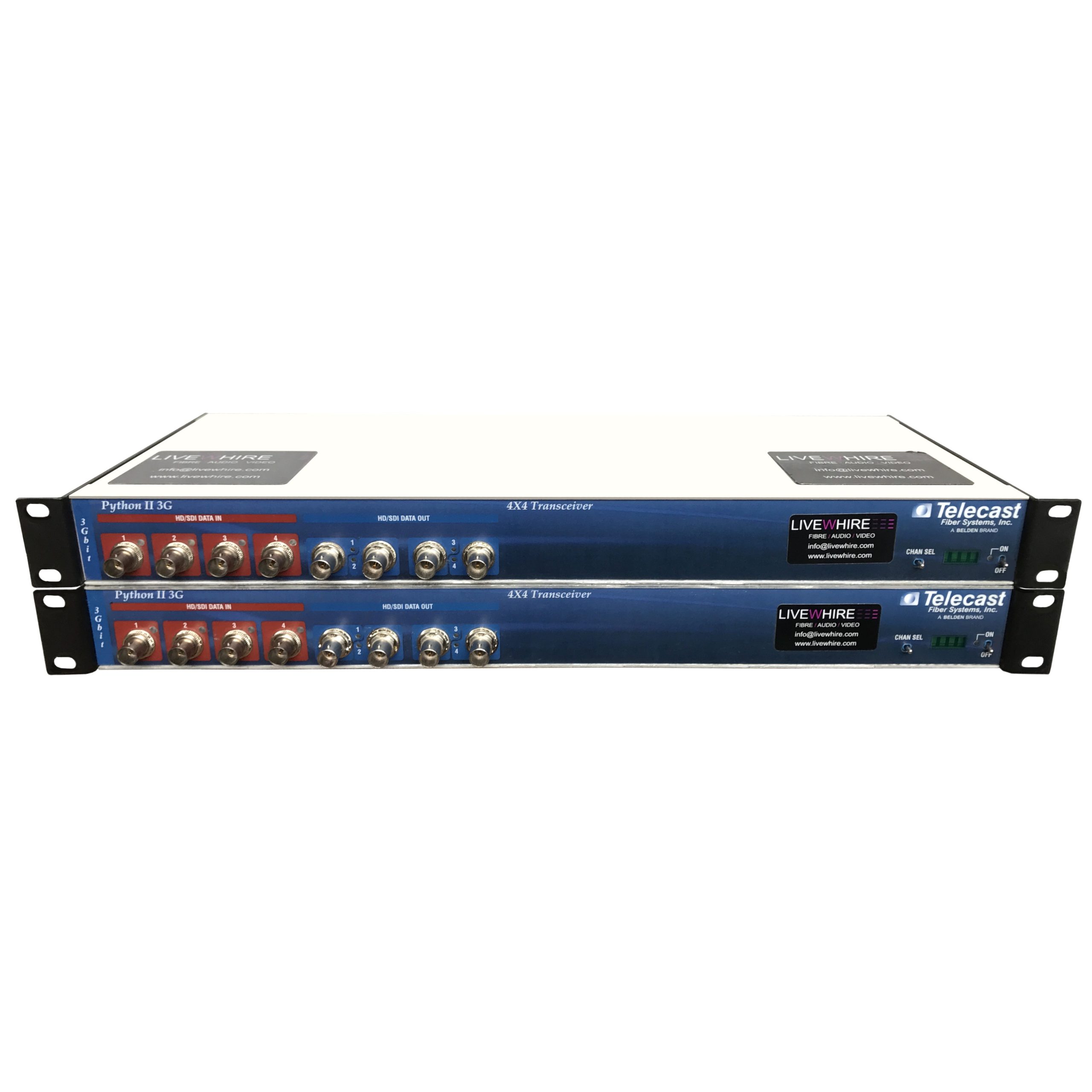

Telecast Python 4/4 4K
The Python 3G is your answer to lowering the cost of digital video distribution, simplifying your cable plant and eliminating all concerns about distance, interference and grounding. The Python 3G converts up to two groups of 8-channels of HD-SDI to fiber optic transport, all in a compact 1 RU frame.
4 bi-directional channels per 1 RU
Wide range of digital formats
19.4 Mb/s to 3 Gb/s transport
Handles DVB/ASI signals
Immune to pathological data errors
Equalizes coax up to 3 Gb/s
CWDM multiplexing options
Compatible with other Grass Valley HD/SD-SDI transport systems
Category: Fibre
Related products
Telecast SHED HDX
SHED stands for SMPTE Hybrid Elimination Device, and that is what it is. It is a small adapter that allows you to use ordinary single-mode optical fibre for your HD, 4K and slow-motion camera links and in your venue/facility infrastructure, and eliminate bulky hybrid wire/ fibre.
SHED adapter shown with HDX camera power unit cables. Use two small adapters — one at your base station and one at your camera — and locally power your camera, or use the HDX unit to power the camera through the hybrid tail cable. With the SHED units you can support several cameras on one lightweight fibre cable.
Allows the use of conventional single-mode fiber cable
Uses common SMPTE ST 304 connectors for a hybrid link
Extends manufacturer’s distance limits of the camera/CCU
Supports Sony cameras
Built-in optical power meter
Cameras Supported: Sony 1500/1500R/2500/4300
PRODUCT MANUAL
TP Link Gigabit Ethernet Converter
The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers(9.3 miles).
Complies with IEEE 802.3ab and IEEE 802.3z
Provides switch configuration of Force /Auto transfer mode for FX port
Extends fiber distance up to 15km(9.3 miles)
PRODUCT MANUAL
Ereca Stage Racer
The Stage Racer product line is an ultra flexible solution to connect a stage to an OB VAN.
With the ERECA unique feature for on the fly direction configurable 3G-SDI channels and the numerous commodities signal transmitted along the videos, the stage racer is the product of choice for an affordable fast and easy event deployment.
All our Stage Racers are built in to bespoke 6U racks to utilise all signal functionality.
The equipment assumes transmission of a comprehensive set of signals as follows:
8 or 12 x video 3G / HD / SDI signals (direction configurable through built in web server),
1 x Genlock bidirectional (PAL image / Black burst / Tri-level),
16 x analog audio for intercom or broadcasting,
8 x Microphone pre-amp blocks
2 x Ethernet 10/100/1000Mbs (1 Gigabit trunk with 2 VLANS),
4 x Data RS 232/422/485,
8 x Contact closures.
4 x AES 3 bidirectional (Riedel panel compatible)
1 x bidirectional MADI (AES10) Signal (Shared with 2 of the 4 AES connectors).
For flexible setup the mechanical is declined in a 1U rack which fits everywhere and in a very rugged compact die cast aluminum box. This latter enclosure ensures excellent shock/drop protection along with dust and water resistant capacity for all “no fly case” applications. Links can be built between racks, rugged boxes or rack and rugged box.
All the signals are transmitted on 2 singlemode fibers. As an option, an optical cable failover is built inside the modules by adding a second connector. In case of fiber break the equipment automatically select the other cable.
PRODUCT MANUAL
Ereca Stageracer 2
The Stage Racer 2 is a complete optical fiber transmission solution for every broadcast event ranging from simple OB interconnect to complex star, ring or linear topology spread over a whole TV compound. Remote production capacity also allows the exchange of content with distant locations.
The Stage Racer 2 is designed to accept all kinds of signals on the same device without external adapter.
Internally those signals can be grouped/routed/distributed to all other machines of the network.
Only 2 fibers connected directly on the unit are needed to get full transport capacity.
The Stage Racer 2 also offers processing capabilities with Frame buffering, Audio Embedding/Deembedding, Audio SRC and much more….
The Stage Racer 2 setup is provided with an easy to use web interface or with automation systems (VSM…)
Each unit is capable of transmitting a comprehensive set of signals as follows:
16 SD to 3G bidirectional ports (direction configurable)
8 SD to 12G bidirectional ports (direction configurable)
1 Distributed Genlock (Composite video / Black burst / Tri-level)
16 Bidirectional analog audio for intercom or programme
2 Ethernet 10/100/1000Mbs
2 Data RS 232/422/485
8 Contact closures
4 AES 3 bidirectional (intercom panel compatible)
1 Bidirectional MADI (AES10) Signal (Shared with 2 of the 4 AES connectors)
1 Built in Dante / AES67 audio port with 64 channels support.
