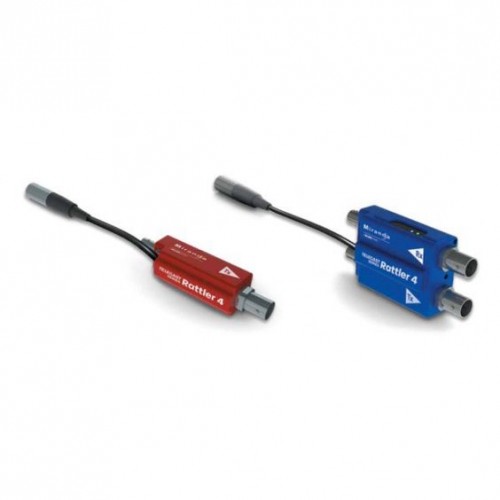

Telecast Rattler 4K
The Telecast Series' unique Rattler 4 miniature fiber optic serial digital video transmission modules from Grass Valley, a Belden Brand, offer the industry's broadest range of digital rates while maintaining the signal quality that broadcasters demand.
Portable, lightweight devices
19.4 Mb/s to 3 Gb/s
Standard formats internally reclocked: 270 Mb/s, 1.5 Gb/s and 3 Gb/s
18 CWDM wavelengths
Up to 50 km (31 mi.) distance
Supports embedded audio
Power from 5-16 VDC
Category: Fibre
Related products
Ereca Stageracer 2
The Stage Racer 2 is a complete optical fiber transmission solution for every broadcast event ranging from simple OB interconnect to complex star, ring or linear topology spread over a whole TV compound. Remote production capacity also allows the exchange of content with distant locations.
The Stage Racer 2 is designed to accept all kinds of signals on the same device without external adapter.
Internally those signals can be grouped/routed/distributed to all other machines of the network.
Only 2 fibers connected directly on the unit are needed to get full transport capacity.
The Stage Racer 2 also offers processing capabilities with Frame buffering, Audio Embedding/Deembedding, Audio SRC and much more….
The Stage Racer 2 setup is provided with an easy to use web interface or with automation systems (VSM…)
Each unit is capable of transmitting a comprehensive set of signals as follows:
16 SD to 3G bidirectional ports (direction configurable)
8 SD to 12G bidirectional ports (direction configurable)
1 Distributed Genlock (Composite video / Black burst / Tri-level)
16 Bidirectional analog audio for intercom or programme
2 Ethernet 10/100/1000Mbs
2 Data RS 232/422/485
8 Contact closures
4 AES 3 bidirectional (intercom panel compatible)
1 Bidirectional MADI (AES10) Signal (Shared with 2 of the 4 AES connectors)
1 Built in Dante / AES67 audio port with 64 channels support.
Ereca Stage Racer
The Stage Racer product line is an ultra flexible solution to connect a stage to an OB VAN.
With the ERECA unique feature for on the fly direction configurable 3G-SDI channels and the numerous commodities signal transmitted along the videos, the stage racer is the product of choice for an affordable fast and easy event deployment.
All our Stage Racers are built in to bespoke 6U racks to utilise all signal functionality.
The equipment assumes transmission of a comprehensive set of signals as follows:
8 or 12 x video 3G / HD / SDI signals (direction configurable through built in web server),
1 x Genlock bidirectional (PAL image / Black burst / Tri-level),
16 x analog audio for intercom or broadcasting,
8 x Microphone pre-amp blocks
2 x Ethernet 10/100/1000Mbs (1 Gigabit trunk with 2 VLANS),
4 x Data RS 232/422/485,
8 x Contact closures.
4 x AES 3 bidirectional (Riedel panel compatible)
1 x bidirectional MADI (AES10) Signal (Shared with 2 of the 4 AES connectors).
For flexible setup the mechanical is declined in a 1U rack which fits everywhere and in a very rugged compact die cast aluminum box. This latter enclosure ensures excellent shock/drop protection along with dust and water resistant capacity for all “no fly case” applications. Links can be built between racks, rugged boxes or rack and rugged box.
All the signals are transmitted on 2 singlemode fibers. As an option, an optical cable failover is built inside the modules by adding a second connector. In case of fiber break the equipment automatically select the other cable.
PRODUCT MANUAL
Bluebell Dual Channel 4K
The Dual channel Bluebell is a transmitter module for the conversion of 12G-SDI signals into fibre optical cable. The incoming signals are auto-sensed and then equalised prior to conversion and transmission down a single optical fibre. All Bluebell products are designed to retain maximum integrity of the signal path offering excellent jitter free optical transport. A loop out is provided for signal monitoring or distribution.
The kits are extremely compact single channel fibre optic converters that are perfectly suited to provide interference free transmission and for extending the range of electrical signals, particularly 12G-SDI signals.
Dual Channel Inputs
Single Optical Fibre
Low Jitter
PRODUCT MANUAL
Ereca Camracer 8k
The Camracer is a complete optical fiber transmission solution for camera connections on Outside Broadcast, Studio and Cinema applications. It is composed of a camera-dockable transmitter, agnostic to any type or brand of Camera and a 1RU basestation receiver.
Features:
- With two 3G-SDI channels, the CAM RACER can fit any camera from simple ENG to 3G professional sport devices making it suitable for any environment and ideal for rentals.
- CAM RACER delivers 140 Watts to the camera. An automatic battery backup will help the remote powering system if more power is needed suddenly.
- Signals control and Setup is done through internal web server. Most signals are also reported on LED display of each unit. An Oled display gives direct access to optical receiving levels and server IP address.
- An internal audio mixer allows user to mix between talkback, programs inputs and local audio channels for Eng and Reporter headsets.
- Camera control channel supports: Ethernet, RS422 Serial, Canon RC-V100 protocol (Enhanced Lanc).
- Camera synchronization supports: Two composite video signals and one timecode.
