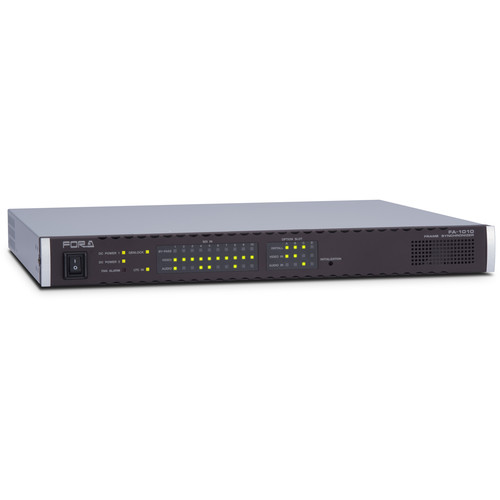

FOR-A FA-1010 Frame Synchronizer
Frame synchronizer equipped with an array of essential functions used in video production and that allow multi-channel routing (10-input/10-output video). Supports 3G-SDI and HD/SD-SDI input/output as standard and includes all typical FS and CC (standard) features. Highly versatile audio signal processing capability with delay adjustment and remapping functions plus a sampling rate converter. Combining these varied options allows a single unit to provide optimal functionality for all video production scenes, including those used in transmission, outside broadcasting, news reporting, production, editing and distribution.
10 x Processors
Colour Correction on each input
10/10 Clean Swtich
SDI I/O Relay Bypass
