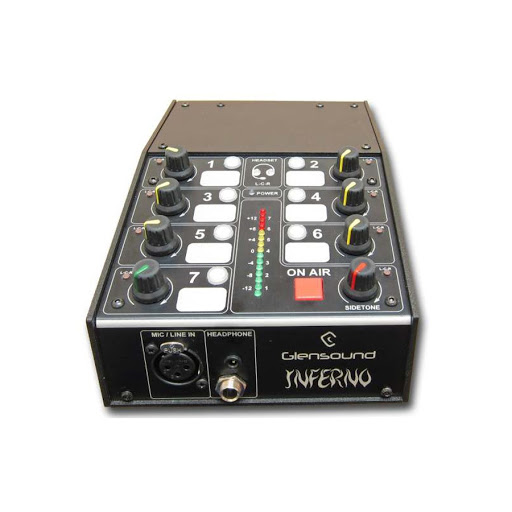

Glensound Inferno Comms Kit

Inferno can be used on it’s own when connected to a Dante audio network. Many audio routers, consoles and intercom systems are Dante compatible, and will accept the Inferno link, enabling Glensound grade commentary into the audio network.

Inferno can also be used outside of a dedicated Dante network when connected to one of the DARKxx or AoIP44 break out boxes. This connection can be direct or across a structured network. The DARKxx or AoIP44 units allows all of the audio inputs and outputs to be located in a separate location to the Inferno.

When connected to a Dante network, sources and destinations can be configured from any part of the network using the free Dante controller software. Details are available at www.audinate.com

The seven illuminated talkback buttons route the audio input to 7 different destinations and remove the audio from the main programme output.

Seven external sources plus sidetone are presented on eight level controls allowing the user to create their own required monitoring mix of all sources. Each input can be independently selected to be on the users left ear, right ear or both ears. The headphone connection is available on a 3.5mm and a 6.35mm jack socket.

The single input is switchable on the rear panel to be line/mic/48v and has adjustable input gain. The input also features Glensound’s Referee compressor limiter system. This applies a variable rate compressor to the input peaks so that no clipping occurs, without affecting the rest of the audio signal.

The Inferno contains a web server, allowing remote functionality to an engineer from any PC connected to the network via any web browser. Enter the IP address of the Inferno in the browser for remote control of the front end mic gain. It also allows configuration of each push button on the unit to be on/off latching, momentary (push to talk), always on, and off when pushed (cough), or in an intelligent mode where a short press latches or a longer press is just momentary.

Single user Dante commentary box
System is scalable with multiple commentators as part of a Dante network
Can connect to any Dante compatible network or directly to our DARK units.
Single mic/line/48v input with Referee compressor/limiter
Headphone mixer has 7 inputs supplied from the Dante network, plus the local input (sidetone)
Each headphone input has left/both/right headphone switching
7 talkback circuits are programmable via the Dante network
Browser based remote control of input gain and switching functions
PoE, Mains or DC powering options
