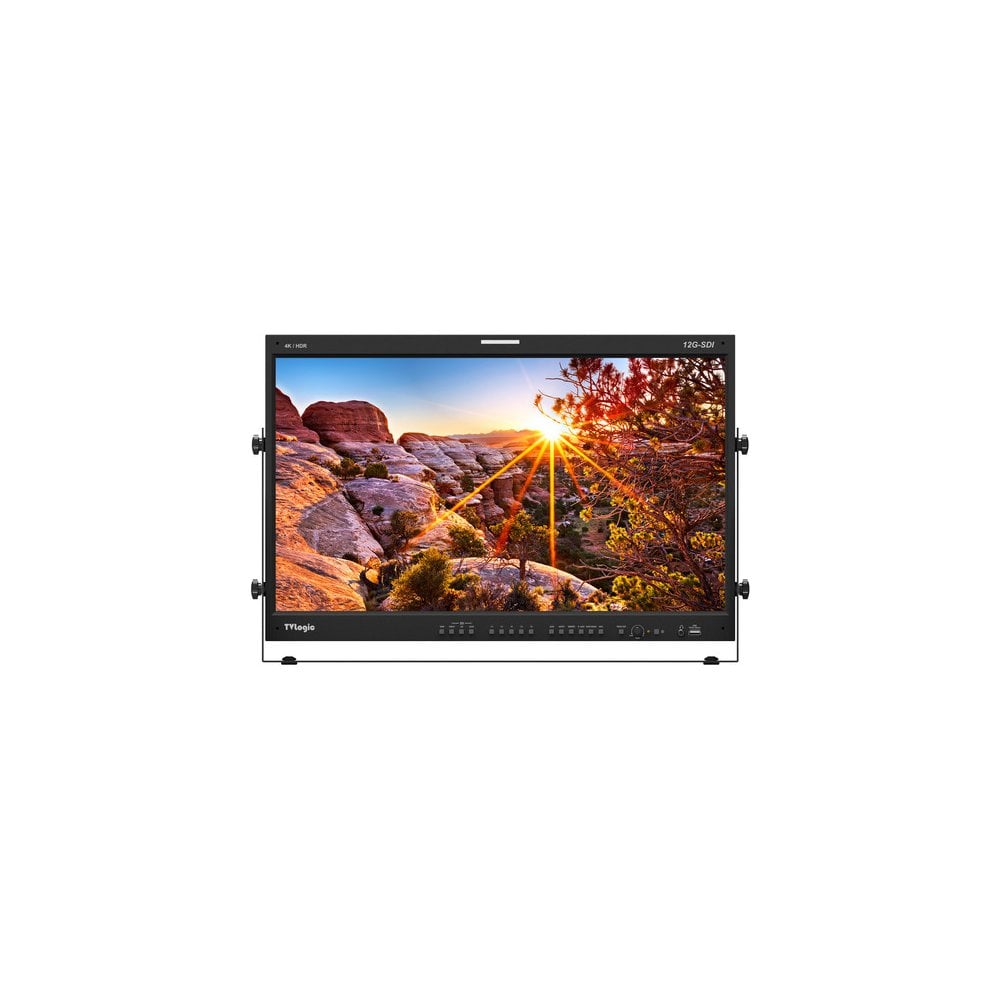

TV Logic LUM-242H Monitor
The LUM-242H is a 24 inch monitor with UHD resolution (3840 x 2160), high luminance up to 1,000cd/㎡, a 10-bit color depth, high contrast ratio of 1,000 : 1 and wide viewing angle. The LUM-242H supports various standard color gamuts including 90% DCI-P3 coverage. It supports 12G-SDI signal with 4 BNC input connectors (2 for 12G-SDI and 2 for 3G-SDI) and an HDMI 2.0 input.
Related products
Riedel Micron 80G
MicroN is an 80G media distribution network device for Riedel’s MediorNet line of media transport and management solutions.
Working seamlessly with the MediorNet MetroN core fiber router, MicroN is a high-density signal interface with a complete array of audio, video, and data inputs and outputs, including 12 SD/HD/3G-SDI inputs and 12 SD/HD/3G-SDI outputs, two MADI optical digital audio ports, a Gigabit Ethernet port, two sync reference I/Os, and eight 10G MediorNet Links (4.25 capable). MicroN is available as a fully networked MediorNet device, as well as in a point-to-point edition at a very competitive price point.
In just 1RU, MicroN offers a highly versatile signal interface that can be used in productions of every size and complexity. For the largest media networks built on MediorNet transport devices, MicroN can serve as a breakout box for a MetroN router and extend connectivity beyond the fiber I/Os to any type of video and audio I/O required. Or, MicroN can simply work with a MetroN router, with other MicroN units, or in a standalone point-to-point configuration to provide an economical solution for small- to medium-sized productions. And, like the other MediorNet devices, MicroN has powerful built-in signal processing features that eliminate the need for many external devices.
Because of the Micron's versatility it is a suitable alternative to a Lawo V PRO 8.
Standalone Mode as a 12x12 Router and audio embedder/de-embedder
Point-to-point functionality, 12 bi-dir SDI I/Os, two MADI I/Os, Gigabit Ethernet
Meshed Network functionality as router replacement
Router functionality including MetroN and MicroN
PRODUCT MANUAL
Sony PVMX2400 HDR Monitor
The PVM-X2400 is a 24-inch 4K HDR high grade picture monitor, incorporating a Sony-specified premium LCD panel that offers 1000 cd/m2 luminance and colour matching with the BVM-HX310 4K HDR master monitor. This makes group monitoring easy for on-set, studio and truck applications, and in 19” EIA racks for editing, audio mixing etc.
Sony’s acclaimed TRIMASTER architecture delivers accurate picture reproduction, precise imaging and quality picture consistency. There are many advantages in the panel control and signal processing system such as fast processing, accurate linearizing of an input signal with Optical Electrical Transfer Function, accurate colour reproduction, etc.
Dynamic Contrast Drive is a new backlight control system that dynamically changes the panel’s backlight luminance to adapt to changing content enabling you to confirm the total balance of highlights and low lights at a glance. The feature can be used to reproduce black representation in dark content, such as night scenes and provide specular highlights in bright content such as snow field and summer beach scenes. The Dynamic Contrast Drive feature provides a dynamic contrast ratio of 1,000,000:1.
Due to the inherent nature of LCD panels, some backlight leakage is unavoidable. To compensate, Black Detail Mode High/Mid/Low facilitates more accurate monitoring of black detail in dark, low- APL (average picture level) images. The backlight level is reduced but gamma is maintained for correct colour and grey scale. High luminance areas may be clipped due to the dynamic range of the monitor. Any clipped portions can be displayed as clipped or highlighted by a zebra pattern.
Color-matched 4K HDR picture monitors color with the BVM-HX310
Dynamic Contrast Drive and Black Detail High/Mid/Low
Inputs for 12G-SDI and Quad-Link 3G-SDI to HD-SDI as well as HDMI
Unique Quad View display with User 3D LUT
Product Manual
Telecast SHED HDX
SHED stands for SMPTE Hybrid Elimination Device, and that is what it is. It is a small adapter that allows you to use ordinary single-mode optical fibre for your HD, 4K and slow-motion camera links and in your venue/facility infrastructure, and eliminate bulky hybrid wire/ fibre.
SHED adapter shown with HDX camera power unit cables. Use two small adapters — one at your base station and one at your camera — and locally power your camera, or use the HDX unit to power the camera through the hybrid tail cable. With the SHED units you can support several cameras on one lightweight fibre cable.
Allows the use of conventional single-mode fiber cable
Uses common SMPTE ST 304 connectors for a hybrid link
Extends manufacturer’s distance limits of the camera/CCU
Supports Sony cameras
Built-in optical power meter
Cameras Supported: Sony 1500/1500R/2500/4300
PRODUCT MANUAL
Lawo V Pro 8
The V__pro8 is the perfect tool to connect different video formats as well as to connect between audio and video. High-quality format conversion, color correction as well as audio embedding and de-embedding make the V__pro8 a compact and powerful video processor that builds bridges between different worlds and formats.
Two high-density MADI audio ports provide efficient video-to-audio bridging within the studio infrastructure. The V__pro 8 works as a flexible matrix system: using its 8 x 8 video matrix and 384 x 384 audio matrix, it is possible to switch any signal to any other.
A modern GUI based on HTML5 provides an ideal interface for easy handling of day-to-day work. Here’s how it works: eight high-quality 3G SDI de-embedders and a corresponding number of embedders are looped into the eight video signals according to your preferences.
This enables any number of audio signals to be used from the video material, and new audio signals to be embedded into the video signal — a simple, reliable and efficient solution.
The V__pro8 can be configured via an easy-to-understand HTML 5-based touch screen interface that runs directly within the web browser. No software installation is needed. As a result, you benefit not only from state-of-the-art user-guidance, but also from elegant animations and many, practical features such as the video channel preview on your GUI.
In addition, the web-based approach enables the user to access all V__line devices from anywhere within the network — a feature especially useful in bigger set-ups or in outside broadcast productions with long-distance links.
Frame sync for each of the 8 channels
Variable audio and video delays for each channel
RGB Color correction & Proc Amp for each channel
Two Surround-to-stereo downmixers per embedder
Frame Phaser and Line Phaser modes
Embedding and de-embedding incl. SRC for each channel
Up/Down/Cross format & AR conversion for two channels
Internal 8×8 video and 384×384 audio routing matrix
Product Manual
