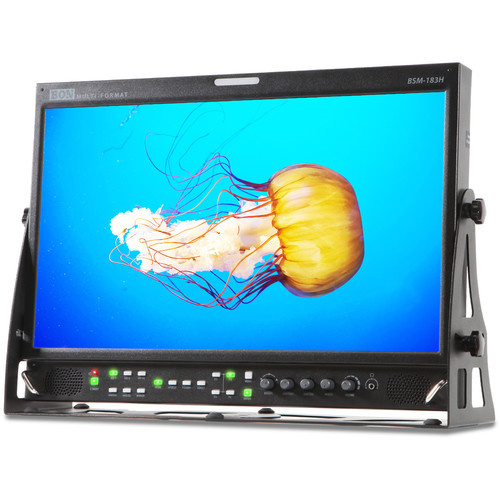

Bon BSM-183H High Bright Monitor
Designed for shooting outdoors and in other brightly lit conditions, the BON BSM-183H 18.5″ 3G/SD-SDI & HDMI High Brightness Field Monitor features a 1200 cd/m² daylight-viewable LCD screen. The high brightness preserves contrast and prevents the on-screen image from getting washed out. The 1366 x 768 LED-backlit LCD panel can display SD and HD signals from any of the HDMI, DVI, or analog video inputs. The two 3G-SDI inputs can handle up to 2K resolutions. SDI and analog looped outputs can be used to further route the incoming video. Onboard monitoring tools include waveform, vectorscope, and exposure range check for analyzing incoming video signals and adjusting exposure.
