Blackmagic 12G Dual Channel

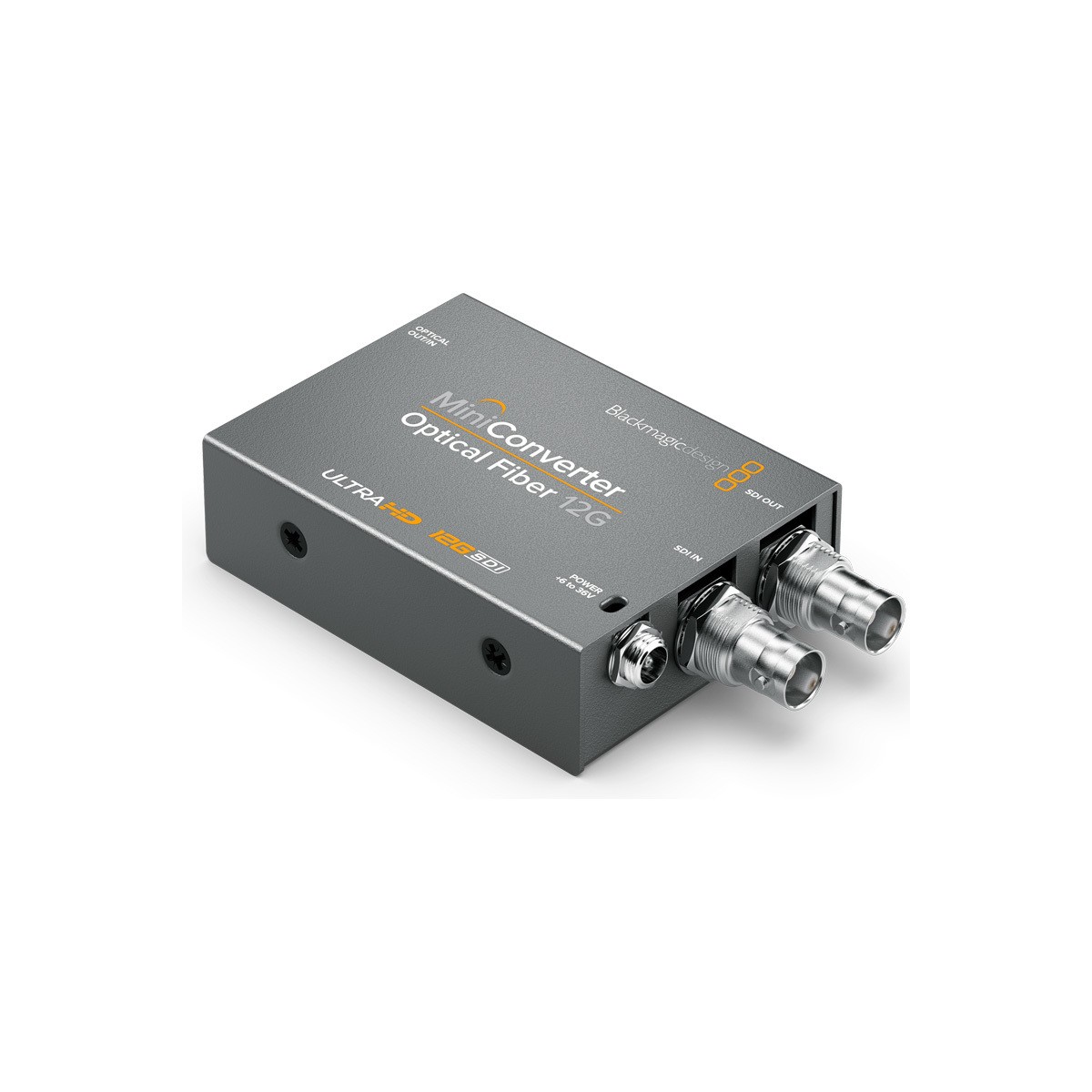

Blackmagic Design Mini Converter Optical Fibre 12G – Bi-Directional SDI to Optical Fibre
Mini Converter Optical Fibre 12G converts SDI to optical fiber and optical fibre to SDI in both directions at the same time, you can even have different video standards going in each direction. The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. You can install any standard 3G, 6G or 12G‑SDI SFP optical fibre module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.
Related products
![](https://www.livewhire.com/wp-content/uploads/2017/11/SHED_HDX_Both-300x223.jpg)
Telecast SHED HDX
SHED stands for SMPTE Hybrid Elimination Device, and that is what it is. It is a small adapter that allows you to use ordinary single-mode optical fibre for your HD, 4K and slow-motion camera links and in your venue/facility infrastructure, and eliminate bulky hybrid wire/ fibre.
SHED adapter shown with HDX camera power unit cables. Use two small adapters — one at your base station and one at your camera — and locally power your camera, or use the HDX unit to power the camera through the hybrid tail cable. With the SHED units you can support several cameras on one lightweight fibre cable.
Allows the use of conventional single-mode fiber cable
Uses common SMPTE ST 304 connectors for a hybrid link
Extends manufacturer’s distance limits of the camera/CCU
Supports Sony cameras
Built-in optical power meter
Cameras Supported: Sony 1500/1500R/2500/4300
PRODUCT MANUAL
![](https://www.livewhire.com/wp-content/uploads/2020/12/pvm_x1800_web1-300x300.jpg)
Sony PVM-X1800 HDR Monitor
The PVM-X1800 is an 18.4-inch 4K HDR high grade picture monitor, incorporating a Sony-specified premium LCD panel that offers 1000 cd/m2 luminance and colour matching with the BVM-HX310 4K HDR master monitor. This makes group monitoring easy for on-set, studio and OB van walls, and in 19” EIA racks for editing, audio mixing etc.
Sony’s acclaimed TRIMASTER architecture delivers accurate picture reproduction, precise imaging and quality picture consistency. There are many advantages in the panel control and signal processing system such as fast processing, accurate linearizing of an input signal with Optical Electrical Transfer Function, accurate colour reproduction, etc.
Dynamic Contrast Drive is a new backlight control system that dynamically changes the panel’s backlight luminance to adapt to changing content enabling you to confirm the total balance of highlights and low lights at a glance. The feature can be used to reproduce black representation in dark content, such as night scenes and provide specular highlights in bright content such as snow field and summer beach scenes. The Dynamic Contrast Drive feature provides a dynamic contrast ratio of 1,000,000:1.
Due to the inherent nature of LCD panels, some backlight leakage is unavoidable. To compensate, Black Detail Mode High/Mid/Low facilitates more accurate monitoring of black detail in dark, low- APL (average picture level) images. The backlight level is reduced but gamma is maintained for correct colour and grey scale. High luminance areas may be clipped due to the dynamic range of the monitor. Any clipped portions can be displayed as clipped or highlighted by a zebra pattern.
Color-matched 4K HDR picture monitors color with the BVM-HX310
Dynamic Contrast Drive and Black Detail High/Mid/Low
Inputs for 12G-SDI and Quad-Link 3G-SDI to HD-SDI as well as HDMI
Unique Quad View display with User 3D LUT
Product Manual
![](https://www.livewhire.com/wp-content/uploads/2020/12/images-300x300.jpg)
Panasonic AW-RP60 Controller
The all-new AW-RP60 Remote Camera Controller. Equipped with a large LCD to display a GUI menu screen with clear visibility and an improved joystick for smoother control, this controller is compatible with all current Panasonic PTZ models. Thanks to the improved GUI, now all important information about the cameras, such as iris, zoom and focus can be seen at all times directly on the screen. The AW-RP60 is also capable of supporting up to 200 cameras in 20 groups, manages 100 presets and comes with PoE support allowing for an easy integration.
Equipped with a 3.5-type LCD screen
New Joystick with enhanced operability
Flexible customisation features
PoE2 support/Advanced camera adjustment
Product Manual
![](https://www.livewhire.com/wp-content/uploads/2017/11/Stage-Racer2015-front-back-superpo-300x300.jpg)
Ereca Stage Racer
The Stage Racer product line is an ultra flexible solution to connect a stage to an OB VAN.
With the ERECA unique feature for on the fly direction configurable 3G-SDI channels and the numerous commodities signal transmitted along the videos, the stage racer is the product of choice for an affordable fast and easy event deployment.
All our Stage Racers are built in to bespoke 6U racks to utilise all signal functionality.
The equipment assumes transmission of a comprehensive set of signals as follows:
8 or 12 x video 3G / HD / SDI signals (direction configurable through built in web server),
1 x Genlock bidirectional (PAL image / Black burst / Tri-level),
16 x analog audio for intercom or broadcasting,
8 x Microphone pre-amp blocks
2 x Ethernet 10/100/1000Mbs (1 Gigabit trunk with 2 VLANS),
4 x Data RS 232/422/485,
8 x Contact closures.
4 x AES 3 bidirectional (Riedel panel compatible)
1 x bidirectional MADI (AES10) Signal (Shared with 2 of the 4 AES connectors).
For flexible setup the mechanical is declined in a 1U rack which fits everywhere and in a very rugged compact die cast aluminum box. This latter enclosure ensures excellent shock/drop protection along with dust and water resistant capacity for all “no fly case” applications. Links can be built between racks, rugged boxes or rack and rugged box.
All the signals are transmitted on 2 singlemode fibers. As an option, an optical cable failover is built inside the modules by adding a second connector. In case of fiber break the equipment automatically select the other cable.
PRODUCT MANUAL
