Ambient LockitSlate Take 2

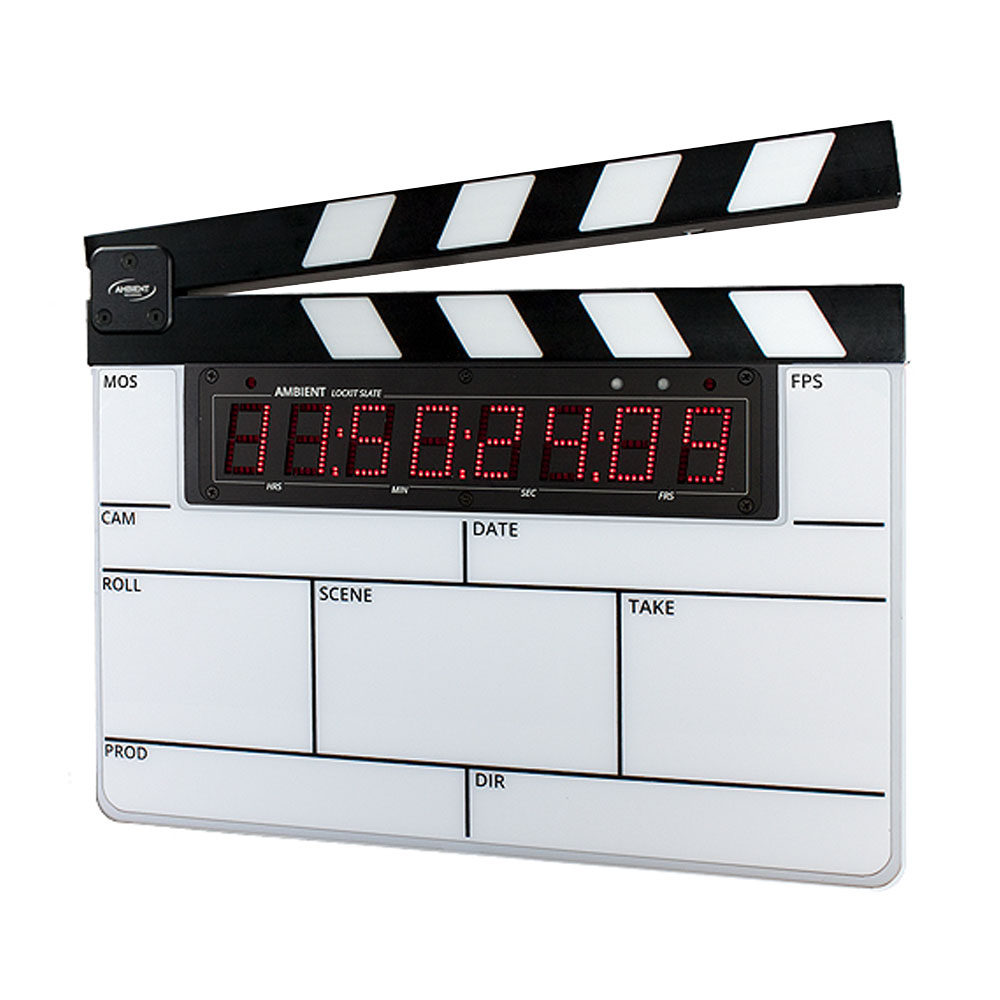

he Ambient ACN-LS Timecode Lockit Slate is a highly accurate smart-slate system featuring a unique product design and functionality.
The completely revised LED timecode display features double the brightness at less than half of the power consumption of its predecessor. This allowed us to reduce the batteries to only 4 AA cells while still achieving prolonged battery life. Additionally, we equipped the new slate with light and motion sensors. Thus, the brightness can adjust automatically to the local light conditions, and the timecode display flips when the slate is turned upside down. The easy removable handle allows for perfect one-handed operation.
