Telecast SHED Passive

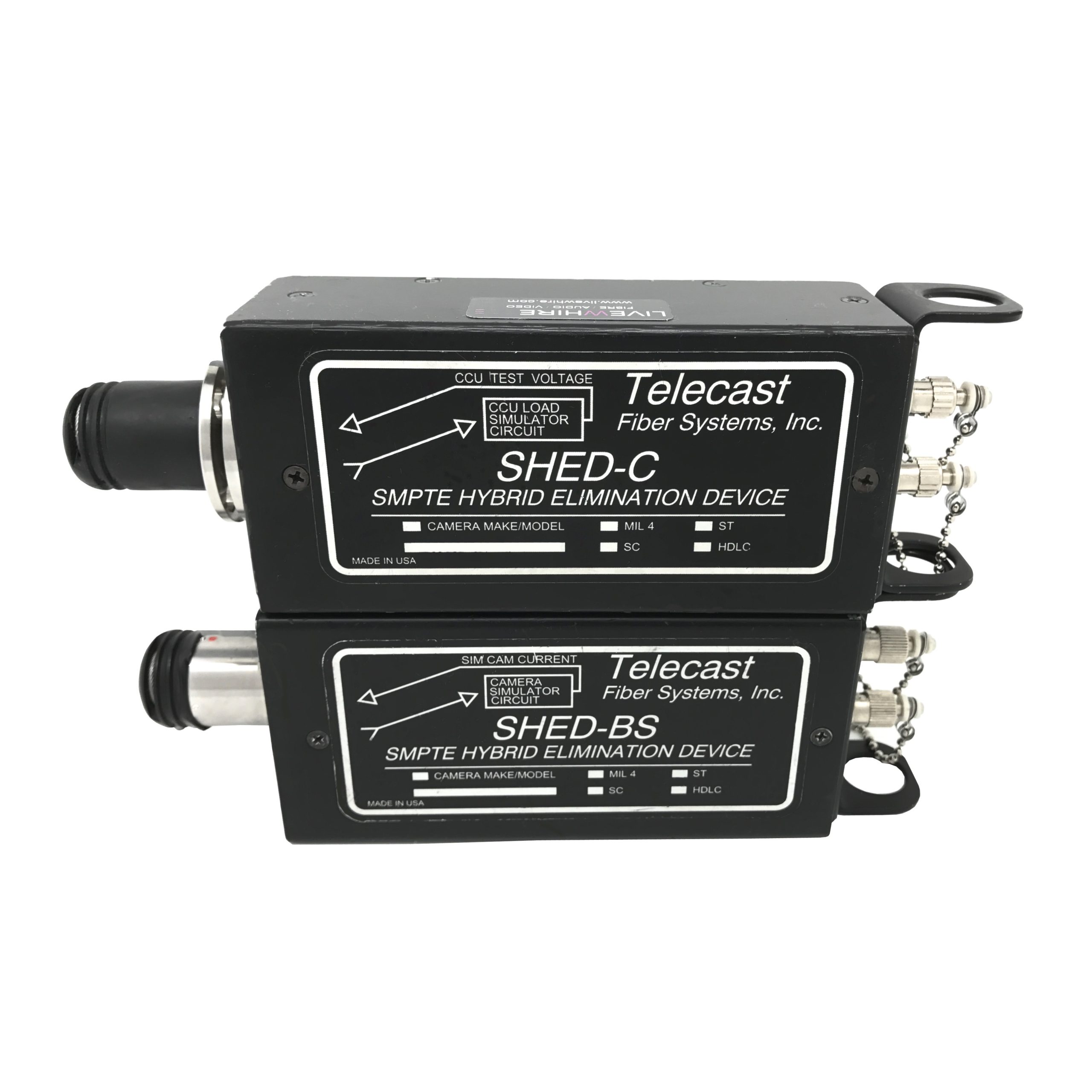

Passive version of the Telecast SHED allowing for the conversion from a LEMO SMPTE connector to ST tactical one.
Related products
Ereca Stage Racer
The Stage Racer product line is an ultra flexible solution to connect a stage to an OB VAN.
With the ERECA unique feature for on the fly direction configurable 3G-SDI channels and the numerous commodities signal transmitted along the videos, the stage racer is the product of choice for an affordable fast and easy event deployment.
All our Stage Racers are built in to bespoke 6U racks to utilise all signal functionality.
The equipment assumes transmission of a comprehensive set of signals as follows:
8 or 12 x video 3G / HD / SDI signals (direction configurable through built in web server),
1 x Genlock bidirectional (PAL image / Black burst / Tri-level),
16 x analog audio for intercom or broadcasting,
8 x Microphone pre-amp blocks
2 x Ethernet 10/100/1000Mbs (1 Gigabit trunk with 2 VLANS),
4 x Data RS 232/422/485,
8 x Contact closures.
4 x AES 3 bidirectional (Riedel panel compatible)
1 x bidirectional MADI (AES10) Signal (Shared with 2 of the 4 AES connectors).
For flexible setup the mechanical is declined in a 1U rack which fits everywhere and in a very rugged compact die cast aluminum box. This latter enclosure ensures excellent shock/drop protection along with dust and water resistant capacity for all “no fly case” applications. Links can be built between racks, rugged boxes or rack and rugged box.
All the signals are transmitted on 2 singlemode fibers. As an option, an optical cable failover is built inside the modules by adding a second connector. In case of fiber break the equipment automatically select the other cable.
PRODUCT MANUAL
TV Logic LUM-242H Monitor
The LUM-242H is a 24 inch monitor with UHD resolution (3840 x 2160), high luminance up to 1,000cd/㎡, a 10-bit color depth, high contrast ratio of 1,000 : 1 and wide viewing angle. The LUM-242H supports various standard color gamuts including 90% DCI-P3 coverage. It supports 12G-SDI signal with 4 BNC input connectors (2 for 12G-SDI and 2 for 3G-SDI) and an HDMI 2.0 input.
Telecast SHED HDX
SHED stands for SMPTE Hybrid Elimination Device, and that is what it is. It is a small adapter that allows you to use ordinary single-mode optical fibre for your HD, 4K and slow-motion camera links and in your venue/facility infrastructure, and eliminate bulky hybrid wire/ fibre.
SHED adapter shown with HDX camera power unit cables. Use two small adapters — one at your base station and one at your camera — and locally power your camera, or use the HDX unit to power the camera through the hybrid tail cable. With the SHED units you can support several cameras on one lightweight fibre cable.
Allows the use of conventional single-mode fiber cable
Uses common SMPTE ST 304 connectors for a hybrid link
Extends manufacturer’s distance limits of the camera/CCU
Supports Sony cameras
Built-in optical power meter
Cameras Supported: Sony 1500/1500R/2500/4300
PRODUCT MANUAL
Plexsis 8-Way 4K
Plexsis provides transport of 8 SDI (HD, 3G and SD) signals over a single optical fibre, and up to 16 when linking two systems, the Plexsis is available in two configurations (8 channels on one direction or 4 in both directions), with each of these available in the high or low wavelength band. All SDI ports are fully re-clocked, meaning that jitter caused by long coaxial runs will not affect the maximum optical run length and vice versa.The front panel OLED screen displays optical power, SDI signal presence, temperature and system voltages, and alarms can be set up to trigger an audible tone or relay contact closure, giving peace of mind when it comes to detecting and resolving distance, grounding and interference issues.
8 x 3G-SDI over one fibre
Automatic cable equalisation
Multi-rate re-clocking with automatic rate detection
Both AC and DC power inputs provides flexibility and power redundancy
Supports SD, HD and 3G SDI
Wide DC input range 9-36V
Full colour front panel display
Optical expansion port
PRODUCT MANUAL
