Ereca Camracer 8k

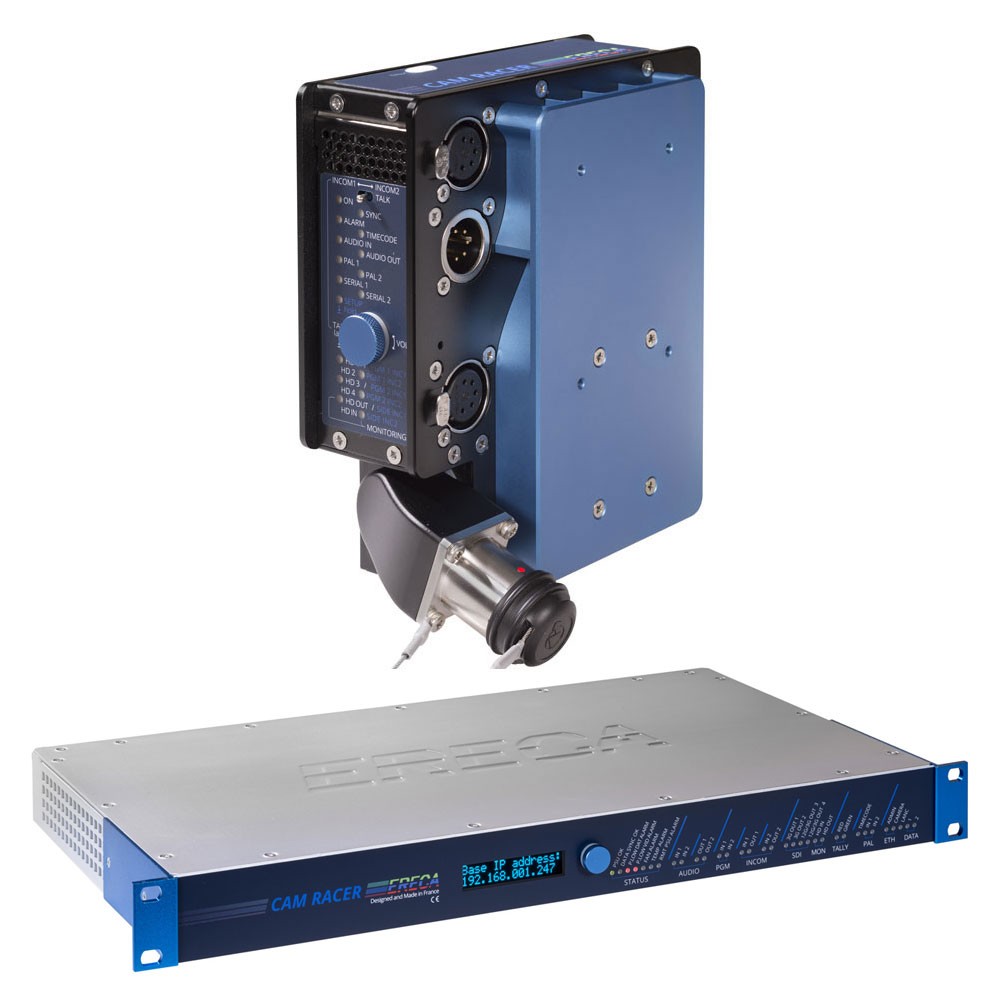

The Camracer is a complete optical fiber transmission solution for camera connections on Outside Broadcast, Studio and Cinema applications. It is composed of a camera-dockable transmitter, agnostic to any type or brand of Camera and a 1RU basestation receiver.

Features:

  • With two 3G-SDI channels, the CAM RACER can fit any camera from simple ENG to 3G professional sport devices making it suitable for any environment and ideal for rentals.
  • CAM RACER delivers 140 Watts to the camera. An automatic battery backup will help the remote powering system if more power is needed suddenly.
  • Signals control and Setup is done through internal web server. Most signals are also reported on LED display of each unit. An Oled display gives direct access to optical receiving levels and server IP address.
  • An internal audio mixer allows user to mix between talkback, programs inputs and local audio channels for Eng and Reporter headsets.
  • Camera control channel supports: Ethernet, RS422 Serial, Canon RC-V100 protocol (Enhanced Lanc).
  • Camera synchronization supports: Two composite video signals and one timecode.
Categories: , , ,

Description

The Camracer is a complete optical fiber transmission solution for camera connections on Outside Broadcast, Studio and Cinema applications. It is composed of a camera-dockable transmitter, agnostic to any type or brand of Camera and a 1RU basestation receiver.

The transmitter is fitted in a V-mount dockable unit which can be installed on any camera. Red/green tally led are located on top of the unit. A user panel feature LEDs for signal presence/activity, rotary button for volume adjustment and various level settings (sidetone, program1 / program2 listen level) along with push to talk commands.

Cooling of the unit is done by a small and silent fan located at the back of the unit.

The basestation receiver is integrated in a standard 19” 1RU format. All signals are dispatched on standard connectors and standard pinout at the rear of the chassis. (Web server is on a separate Ethernet port).

The front of the chassis is composed of a LED display panel indicating the status of each signals and technical alarms. An Oled display gives direct access to optical receiving levels and server IP address.

The basestation integrates a single mains power supply and two fans for thermal management.

Electrical Interfaces, There are 4 standard configurations of CAM Racer.
