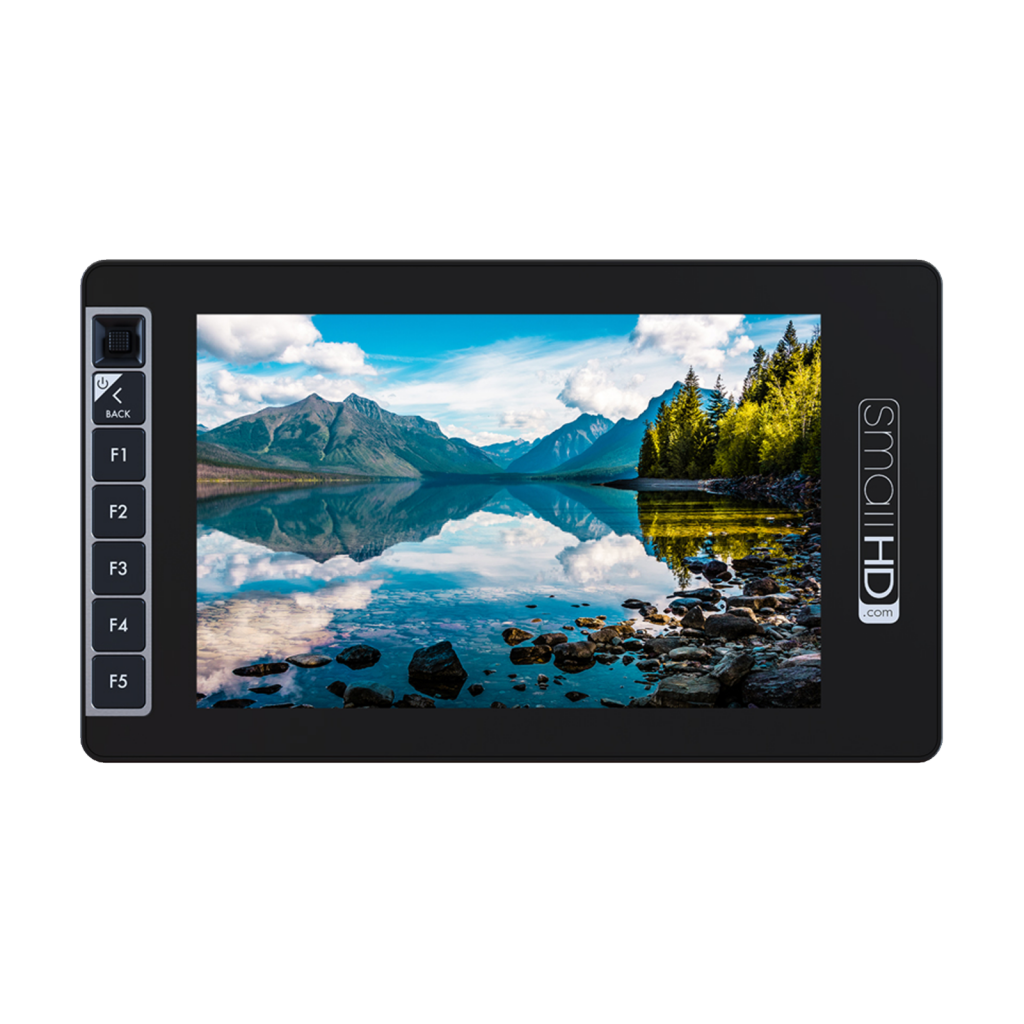

SmallHD 703 7″ Monitor

This SmallHD 703 UltraBright Directors Kitwith V-mount battery plate provides you with a 7″, 2200 cd/m² brightness monitor, a cage and sun hood, accessory handles and neck strap, as well as screen protectors, BNC cable, LEMO power lead cable, and a cleaning cloth. This kit makes it simple for the director to see what the camera sees, whether indoors or out. The included handles allow the monitor to be easily gripped, positioned, or held, while the neck strap helps prevent the monitor from crashing to the ground when held by an easily distracted operator.

The UltraBright monitor’s display is easily visible outdoors even on bright days, and the included anti-reflection screen protector helps with visibility on gray, overcast, glare-riddled days. If you don’t need the anti-glare properties, you can use the included clear screen protector instead. Either protects your screen from day-to-day wear, but the screen protector will not protect your monitor or screen from impact damage.

Though monitoring HD video signals outdoors can be difficult, the SmallHD 703 UltraBright On-Camera Monitor, with its 2200 cd/m² bright backlight, overcomes this environmental difficulty. The 7″ 1920 x 1080 LCD provides a sharp image, ideal for focus pulling and image analysis on set and in the field. Another advantage of the high-brightness panel is the monitor’s ability to preview HDR content. HDR preview extends the display’s dynamic range to portray a greater range of brightness in the image.

A unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. The LCD panel itself is protected by a layer of optically-bonded Gorilla Glass, notable for its transparency and toughness. The optical bonding process ensures that blacks are not washed out and reduces the harshness of reflections.

On the sides of the display are the SDI and HDMI I/O. Having dual SDI ports allows for A/B viewing of two different SDI signals, or the secondary port can be assigned as an output for sending an SDI signal downstream to another monitor, switcher, or wireless accessory. All the functionality of the monitor is available via the PageBuilder OS, which provides advanced functionality with a simple and efficient graphical user interface.
